Change Data Capture Made Easy: Debezium Integration with Spring Boot, MongoDB and Postgres
In today’s applications, real-time data processing is more valuable than ever. Businesses need to react quickly to changing conditions and make data-driven decisions on the fly. To achieve this, capturing changes to your data as they happen is essential, and this is where Change Data Capture (CDC) comes into play.
In this article, we will explore the concept of Change Data Capture and how you can easily integrate it with Spring Boot using Debezium.
What is Change Data Capture?
Change Data Capture (CDC) is a process that identifies and captures changes made to data in a database. These changes can include inserts, updates, and deletes. CDC enables the tracking of data modifications so that applications can react to these changes in real-time. This is particularly valuable for scenarios such as:
- Analytics and Reporting: Immediate access to data changes allows for real-time reporting and analytics, giving businesses a competitive edge.
- Synchronization: Keeping multiple databases or systems in sync by replicating changes as they happen.
- Audit Trail: Maintaining a complete history of data changes for compliance and auditing purposes.
Debezium: A Change Data Capture Solution
Debezium is an open-source CDC platform that captures and streams database changes. It supports various databases, including PostgreSQL, MySQL, SQL Server, and MongoDB. Debezium provides connectors for each of these databases, making it easier to integrate CDC into your application.
Why Use Debezium with Spring Boot and MongoDB?
Spring Boot is a popular Java framework for building web applications and microservices. MongoDB is a NoSQL database known for its flexibility and scalability. When combined with Debezium, you get a powerful trio for building real-time data-driven applications.
Here are some compelling reasons to use Debezium with Spring Boot and MongoDB:
- Realtime Data: Debezium captures changes to MongoDB documents in real-time, allowing your Spring Boot application to react immediately to data changes.
- Reliable Change Tracking: Debezium ensures that all changes are reliably tracked, even in the face of system failures or crashes.
- No Impact on Source Database: Debezium captures changes without putting any additional load on your MongoDB database, making it a non-intrusive solution.
- Easy Integration: Debezium provides a simple and straightforward integration with Spring Boot, thanks to its connectors and plugins.
Our Use Case
Imagine you have an e-commerce platform where all the transactional data is stored in multiple MongoDB collections. This could include user profiles, product catalogs, orders, and reviews.
However, for analytical purposes, you want to maintain a real-time analytics dashboard that requires complex queries and joins across these collections. MongoDB is not very efficient for such operations. So, you decide to use PostgreSQL, which is more suitable for complex queries and joins.

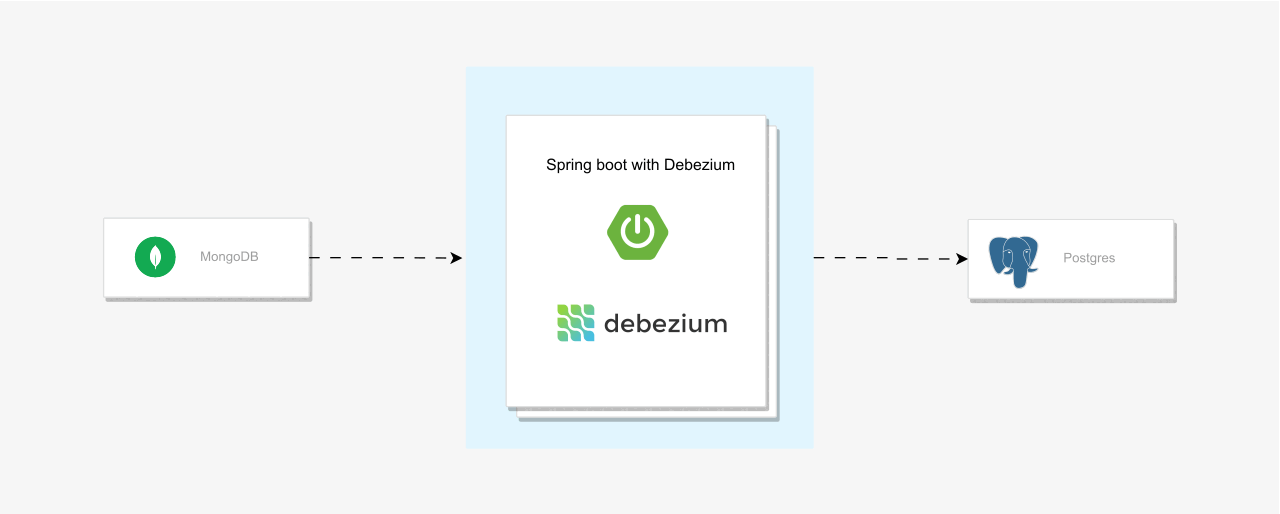

In this tutorial, We’ll demonstrate how to synchronize two databases, MongoDB and Postgres, using Debezium. Whenever an operation is performed on MongoDB, it will trigger a synchronization process in the Postgres database.

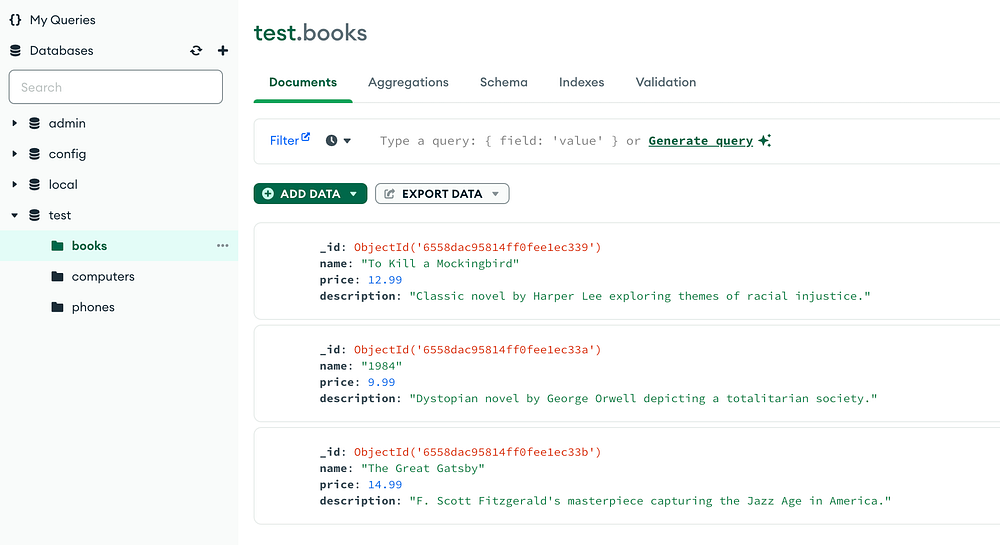

For simplicity, this tutorial we will create three MongoDB collections representing three different products: phones, PCs, and books. These collections will be synchronized with the PostgreSQL products table.
Generating our application

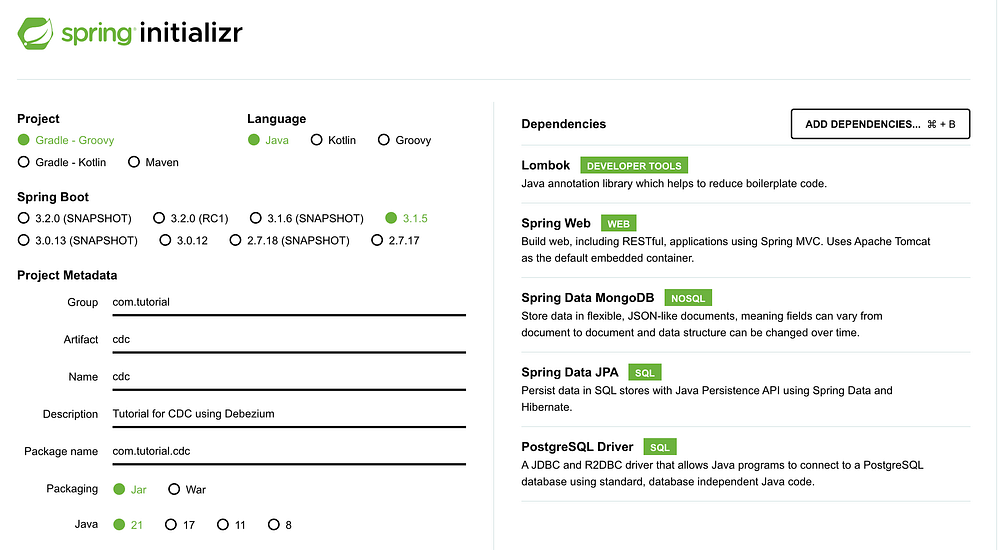

We will generate our project using the Spring Initializr.
Theses are the dependencies that we need to add from the Initializr :
- Lombok
- Spring web
- Spring Data MongoDB
- Spring Data JPA
- PostgreSQL Driver
After generating the project, add it to your favorite IDE 😎.
Now we need to add Debezium’s dependencies:
//Debezium dependencies
implementation 'io.debezium:debezium-api:2.1.2.Final'
implementation 'io.debezium:debezium-embedded:2.1.2.Final'
//Debezium connector for MongoDB
implementation 'io.debezium:debezium-connector-mongodb:2.1.2.Final'
//Debezium offset storage
implementation 'io.debezium:debezium-storage-jdbc:2.3.0.Final'So our dependencies will look like this :
dependencies {
implementation 'org.springframework.boot:spring-boot-starter-data-jpa'
implementation 'org.springframework.boot:spring-boot-starter-data-mongodb'
implementation 'org.springframework.boot:spring-boot-starter-web'
compileOnly 'org.projectlombok:lombok'
annotationProcessor 'org.projectlombok:lombok'
testImplementation 'org.springframework.boot:spring-boot-starter-test'
implementation 'io.debezium:debezium-api:2.1.2.Final'
implementation 'io.debezium:debezium-embedded:2.1.2.Final'
implementation 'io.debezium:debezium-connector-mongodb:2.1.2.Final'
implementation 'io.debezium:debezium-storage-jdbc:2.3.0.Final'
runtimeOnly 'org.postgresql:postgresql'
}Now let’s create the DebeziumConnectorConfig class :
@Configuration
public class DebeziumConnectorConfig {
@Value("${spring.data.mongodb.uri}")
private String mongoDbUri;
@Value("${spring.data.mongodb.username:}")
private String mongoDbUsername;
@Value("${spring.data.mongodb.password:}")
private String mongoDbPassword;
@Value("${spring.datasource.url}")
private String postgresUrl;
@Value("${spring.datasource.username}")
private String postgresUsername;
@Value("${spring.datasource.password}")
private String postgresPassword;
@Value("${database.include.list}")
private String databaseIncludeList;
@Value("${collection.include.list}")
private String collectionIncludeList;
@Value("${spring.profiles.active}")
private String activeProfile;
@Bean
public io.debezium.config.Configuration mongodbConnector() {
Map<String, String> configMap = new HashMap<>();
//This sets the name of the Debezium connector instance. It’s used for logging and metrics.
configMap.put("name", "cdc-mongodb");
//This specifies the Java class for the connector. Debezium uses this to create the connector instance.
configMap.put("connector.class", "io.debezium.connector.mongodb.MongoDbConnector");
//This sets the Java class that Debezium uses to store the progress of the connector.
// In this case, it’s using a JDBC-based store, which means it will store the progress in a relational database.
configMap.put("offset.storage", "io.debezium.storage.jdbc.offset.JdbcOffsetBackingStore");
//This is the JDBC URL for the database where Debezium stores the connector offsets (progress).
configMap.put("offset.storage.jdbc.url", postgresUrl);
configMap.put("offset.storage.jdbc.user", postgresUsername);
configMap.put("offset.storage.jdbc.password", postgresPassword);
//This is the MongoDB connection string that Debezium uses to connect to your MongoDB instance
configMap.put("mongodb.connection.string", mongoDbUri);
//This prefix is added to all Kafka topics that this connector writes to.
configMap.put("topic.prefix", "sbd-mongodb-connector");
//This is a comma-separated list of MongoDB database names that the connector will monitor for changes.
configMap.put("database.include.list", databaseIncludeList);
//This is a comma-separated list of MongoDB collection names that the connector will monitor for changes.
configMap.put("collection.include.list", collectionIncludeList);
//When errors.log.include.messages set to true, then any error messages resulting from failed operations
// are also written to the log.
configMap.put("errors.log.include.messages", "true");
//Use MongoDB without credentials and without SSL for local and test profiles
if (!"local".equals(activeProfile) && !"test".equals(activeProfile)) {
configMap.put("mongodb.user", mongoDbUsername);
configMap.put("mongodb.password", mongoDbPassword);
configMap.put("mongodb.ssl.enabled", "true");
}
return io.debezium.config.Configuration.from(configMap);
}
}Then add used properties to the application.yml file :
spring:
profiles:
active: local
datasource:
url: jdbc:postgresql://localhost:5432/postgres
username: postgres
password: root
data:
mongodb:
uri: "mongodb://localhost:27017/"
database: test
password:
username:
jpa:
hibernate:
ddl-auto: create-drop
database:
include:
list: test
collection:
include:
list: "test.products"Then the DebeziumSourceEventListener class :
First we need to inject these beans to our class :
//This will be used to run the engine asynchronously
private final Executor executor;
//DebeziumEngine serves as an easy-to-use wrapper around any Debezium connector
private final DebeziumEngine<RecordChangeEvent<SourceRecord>> debeziumEngine;Then we should add the constructor :
public DebeziumSourceEventListener( Configuration mongodbConnector) {
// Create a new single-threaded executor.
this.executor = Executors.newSingleThreadExecutor();
// Create a new DebeziumEngine instance.
this.debeziumEngine = DebeziumEngine.create(ChangeEventFormat.of(Connect.class))
.using(mongodbConnector.asProperties())
.notifying(this::handleChangeEvent)
.build();
}Let’s explain the debeziumEngine instance step by step:
DebeziumEngine.create(ChangeEventFormat.of(Connect.class))This line is creating a new instance of the Debezium Engine. The ChangeEventFormat.of(Connect.class) part specifies the format of the change events that the engine will produce. In this case, it’s using the Connect class, which means it will produce events in Kafka Connect’s data format.
.using(mongodbConnector.asProperties())This line is configuring the engine with the properties of a MongoDB connector. The mongodbConnector.asProperties() method should return a Properties object that contains all the necessary configuration for connecting to a MongoDB database.
.notifying(this::handleChangeEvent)This line is specifying a method that will be called whenever a change event is produced by the connector.
To start the debezium engine we need to pass the debeziumEngine to the executor :
@PostConstruct
private void start() {
this.executor.execute(debeziumEngine);
}And to stop it we need to close the engine.
@PreDestroy
private void stop() throws IOException {
if (this.debeziumEngine != null) {
this.debeziumEngine.close();
}
}Now Let’s now the handleChangeEvent method :
private void handleChangeEvent(RecordChangeEvent<SourceRecord> sourceRecordRecordChangeEvent) {
SourceRecord sourceRecord = sourceRecordRecordChangeEvent.record();
Struct sourceRecordKey = (Struct) sourceRecord.key();
Struct sourceRecordValue = (Struct) sourceRecord.value();
if (sourceRecordValue != null) {
try {
String operation = HandlerUtils.getOperation(sourceRecordValue);
String documentId = HandlerUtils.getDocumentId(sourceRecordKey);
String collection = HandlerUtils.getCollection(sourceRecordValue);
Product product = HandlerUtils.getData(sourceRecordValue);
log.info("Collection : {} , DocumentId : {} , Operation : {}", collection, documentId, operation);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
}The handleChangeEvent will extract useful data from the event.
Now we need to write HandlerUtils
/**
* Extracts the document ID from the given Struct object.
*
* @param key The Struct object containing the document information.
* @return The extracted document ID, or null if not found.
*/
public static String getDocumentId(Struct key) {
String id = key.getString("id");
Matcher matcher = Pattern.compile("\"\\$oid\":\\s*\"(\\w+)\"").matcher(id);
return matcher.find() ? matcher.group(1) : null;
}
/**
* Extracts the collection name from the source record value.
*
* @param sourceRecordValue The Struct object representing the source record.
* @return The name of the collection.
*/
public static String getCollection(Struct sourceRecordValue) {
Struct source = (Struct) sourceRecordValue.get("source");
return source.getString("collection");
}
/**
* Deserializes the 'after' field of the source record value into a Product object.
*
* @param sourceRecordValue The Struct object representing the source record.
* @return The deserialized Product object.
* @throws IOException If there is an error during deserialization.
*/
public static Product getData(Struct sourceRecordValue) throws IOException {
var source = sourceRecordValue.get("after").toString();
ObjectMapper mapper = new ObjectMapper();
mapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
return mapper.readValue(source, Product.class);
}
/**
* Retrieves the operation type from the source record value.
*
* @param sourceRecordValue The Struct object representing the source record.
* @return The operation type, such as "insert", "update", or "delete".
*/
public static String getOperation(Struct sourceRecordValue) {
return sourceRecordValue.getString("op");
}
}Now the debezium part is almost ready let’s now prepare the product part that will deal with Postgres.
Starting by the Productentity :
@Entity
@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class Product {
@Id
@GeneratedValue(strategy = GenerationType.SEQUENCE)
private Long id;
private String name;
private Float price;
private String description;
private String sourceCollection;
private String mongoId;
}Then the ProductRepository :
@Repository
public interface ProductRepository extends JpaRepository<Product, String> {
void removeProductByMongoId(String mongoId);
}Then the ProductService :
public interface ProductService {
void handleEvent(String operation, String documentId, String collection, Product product);
}The handleEvent method will be called by the handleChangeEvent method.
@Service
@AllArgsConstructor
public class ProductServiceImpl implements ProductService {
private final ProductRepository productRepository;
@Override
@Transactional
public void handleEvent(String operation, String documentId, String collection, Product product) {
// Check if the operation is either CREATE or UPDATE
if (Envelope.Operation.CREATE.code().equals(operation) || Envelope.Operation.UPDATE.code().equals(operation)) {
// Set the MongoDB document ID to the product
product.setMongoId(documentId);
// Save the updated product information to the database
productRepository.save(product);
// If the operation is DELETE
} else if (Envelope.Operation.DELETE.code().equals(operation)) {
// Remove the product from the database using the MongoDB document ID
productRepository.removeProductByMongoId(documentId);
}
}
}Now we need to update the DebeziumSourceEventListener by injecting the ProductService :
@Slf4j
@Service
public class DebeziumSourceEventListener {
//This will be used to run the engine asynchronously
private final Executor executor;
//DebeziumEngine serves as an easy-to-use wrapper around any Debezium connector
private final DebeziumEngine<RecordChangeEvent<SourceRecord>> debeziumEngine;
//Inject product service
private final ProductService productService;
public DebeziumSourceEventListener(
Configuration mongodbConnector, ProductService productService) {
//Create a new single-threaded executor.
this.executor = Executors.newSingleThreadExecutor();
//Create a new DebeziumEngine instance.
this.debeziumEngine =
DebeziumEngine.create(ChangeEventFormat.of(Connect.class))
.using(mongodbConnector.asProperties())
.notifying(this::handleChangeEvent)
.build();
//Set the product service.
this.productService = productService;
}
private void handleChangeEvent(RecordChangeEvent<SourceRecord> sourceRecordRecordChangeEvent) {
SourceRecord sourceRecord = sourceRecordRecordChangeEvent.record();
Struct sourceRecordKey = (Struct) sourceRecord.key();
Struct sourceRecordValue = (Struct) sourceRecord.value();
if (sourceRecordValue != null) {
try {
String operation = HandlerUtils.getOperation(sourceRecordValue);
String documentId = HandlerUtils.getDocumentId(sourceRecordKey);
String collection = HandlerUtils.getCollection(sourceRecordValue);
Product product = HandlerUtils.getData(sourceRecordValue);
productService.handleEvent(operation, documentId, collection, product);
log.info("Collection : {} , DocumentId : {} , Operation : {}", collection, documentId, operation);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
}
@PostConstruct
private void start() {
this.executor.execute(debeziumEngine);
}
@PreDestroy
private void stop() throws IOException {
if (this.debeziumEngine != null) {
this.debeziumEngine.close();
}
}
}That’s it, Our application is now ready to run 😎
But before we run it, we need to have a running MongoDB and Postgres.
By the way, we need to have a replica set of MongoDB not a simple instance.
Debezium’s MongoDB connector tracks a MongoDB replica set or a MongoDB sharded cluster for document changes in databases and collections, recording those changes as events in Kafka topics.
To keep thing easy, I have prepared a docker-compose.yml that will configure a replica set of MongoDB (1 primary and 2 replicas ) and a Postgres DB
version: '3.8'
networks:
mongo-net:
name: mongo-net
services:
mongo-replica-1:
hostname: mongo-replica-1
container_name: mongo-replica-1
image: mongo:5.0.12
command: mongod --replSet rs --journal --bind_ip_all
ports:
- "27018:27017"
restart: always
networks:
- mongo-net
mongo-replica-2:
hostname: mongo-replica-2
container_name: mongo-replica-2
image: mongo:5.0.12
command: mongod --replSet rs --journal --bind_ip_all
ports:
- "27019:27017"
restart: always
networks:
- mongo-net
mongo-primary:
hostname: mongo-primary
container_name: mongo-primary
depends_on:
- mongo-replica-1
- mongo-replica-2
image: mongo:5.0.12
command: mongod --replSet rs --journal --bind_ip_all
ports:
- "27017:27017"
links:
- mongo-replica-1
- mongo-replica-2
restart: always
networks:
- mongo-net
healthcheck:
test: test $$(echo "rs.initiate({_id:'rs',members:[{_id:0,host:\"mongo-primary:27017\",priority:2},{_id:1,host:\"mongo-replica-1:27017\",priority:0},{_id:2,host:\"mongo-replica-2:27017\",priority:0}]}).ok || rs.status().ok" | mongo --port 27017 --quiet) -eq 1
interval: 10s
start_period: 30s
db:
image: postgres:15.3-alpine
container_name: postgres-db
ports:
- "5432:5432"
environment:
POSTGRES_USER: postgres

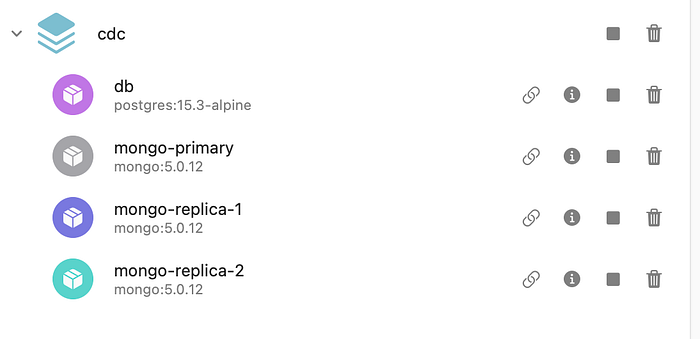

POSTGRES_PASSWORD: rootNow we run this using : docker-compose up -d
Now connect to the primary replica and insert the following data :
db = db.getSiblingDB('test');
db.phones.insertMany([
{
"name": "IPhone 15",
"price": 999,
"description": "Premium Apple smartphone with powerful features."
},
{
"name": "Samsung Galaxy S23",
"price": 899,
"description": "Premium Android smartphone with powerful features."
},
{
"name": "Google Pixel 6",
"price": 799,
"description": "Flagship phone with top-notch camera and performance."
}
])
db.computers.insertMany([
{
"name": "MacBook Pro",
"price": 1499,
"description": "High-performance laptop for professionals."
},
{
"name": "Dell XPS 15",
"price": 1299,
"description": "Powerful laptop with stunning display and long battery life."
},
{
"name": "HP Spectre x360",
"price": 1099,
"description": "Versatile 2-in-1 laptop with impressive design and performance."
}
])
db.books.insertMany([
{
"name": "To Kill a Mockingbird",
"price": 12.99,
"description": "Classic novel by Harper Lee exploring themes of racial injustice."
},
{
"name": "1984",
"price": 9.99,
"description": "Dystopian novel by George Orwell depicting a totalitarian society."
},
{
"name": "The Great Gatsby",
"price": 14.99,
"description": "F. Scott Fitzgerald's masterpiece capturing the Jazz Age in America."
}
])In my case I'm going to use MongoDB Compass

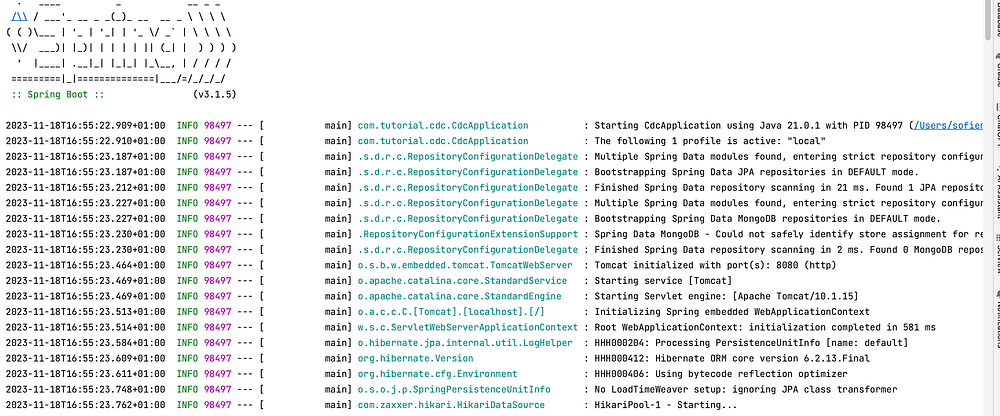

Now let’s start our Spring boot application
At the end of log you will see this :
Collection : phones , DocumentId : 6558dac95814ff0fee1ec333 , Operation : r
Collection : phones , DocumentId : 6558dac95814ff0fee1ec334 , Operation : r
Collection : phones , DocumentId : 6558dac95814ff0fee1ec335 , Operation : r
Collection : computers , DocumentId : 6558dac95814ff0fee1ec336 , Operation : r
Collection : computers , DocumentId : 6558dac95814ff0fee1ec337 , Operation : r
Collection : computers , DocumentId : 6558dac95814ff0fee1ec338 , Operation : r
Collection : books , DocumentId : 6558dac95814ff0fee1ec339 , Operation : r
Collection : books , DocumentId : 6558dac95814ff0fee1ec33a , Operation : r
Collection : books , DocumentId : 6558dac95814ff0fee1ec33b , Operation : rthis happen when you run debezium for the first time, it read the entire database and then calculate a resume token to detect changes starting from that point.
This resume token will be saved into Postgres db as we use JdbcOffsetBackingStore
Debezium supports many other storage tools available here

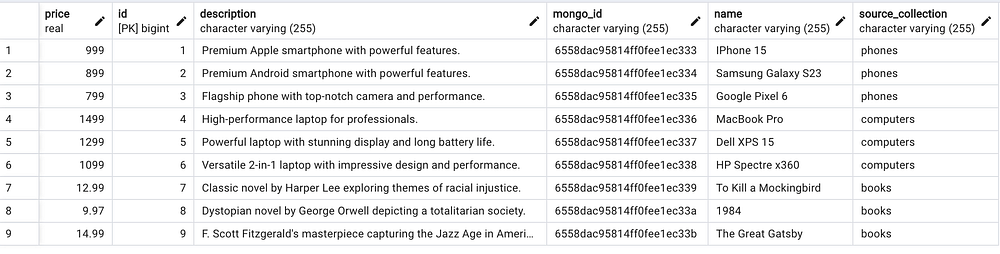

Let’s take a look into our Postgres db and see what we have:
We have one table called product that contains all Mongodb collections data.
Now let’s update a book document :
db.books.updateOne(
{ "_id" : ObjectId("6558dac95814ff0fee1ec33a") },
{ $set: { "price" : 15 } }
)In the application logs we get this :
2023-11-18T17:49:26.559+01:00 INFO 818 --- [pool-2-thread-1] i.d.connector.common.BaseSourceTask : 10 records sent during previous 00:00:28.429, last recorded offset of {rs=rs, server_id=sbd-mongodb-connector} partition is {sec=1700326166, ord=1, transaction_id=null, resume_token=826558EB16000000012B022C0100296E5A1004BCC44D8D7CBE4EC9A5485B28F41E64E346645F696400646558DAC95814FF0FEE1EC33A0004}
2023-11-18T17:49:26.669+01:00 INFO 818 --- [pool-2-thread-1] c.t.c.l.DebeziumSourceEventListener : Collection : books , DocumentId : 6558dac95814ff0fee1ec33a , Operation : uThe first line means that debezium start to use the resume_token and the second line tell us that debezium detected and update operation for a specific document.
Let’s see postgres tables again :
As you can see, now we have a new table called debezium_offset_storage table. This table is used by debezim to store and retreive the resume token.
A Resume Token is a mechanism used to keep track of the position in the MongoDB oplog (operation log) when streaming changes to a Kafka topic. The oplog is a capped collection in MongoDB that records all write operations.
Here’s how it works:
Change Tracking: Debezium monitors the MongoDB oplog for any changes in databases and collections.
Resume Token: As Debezium processes these changes, it generates a unique identifier known as the Resume Token. This token represents a specific position in the oplog.
Fault Tolerance: The Resume Token is crucial for fault tolerance. If the Debezium connector or Kafka Connect process is interrupted, it can use the Resume Token to resume streaming from the last processed position in the oplog, ensuring no data loss.
It is essential to carefully select the Debezium storage to avoid losing the resume token.

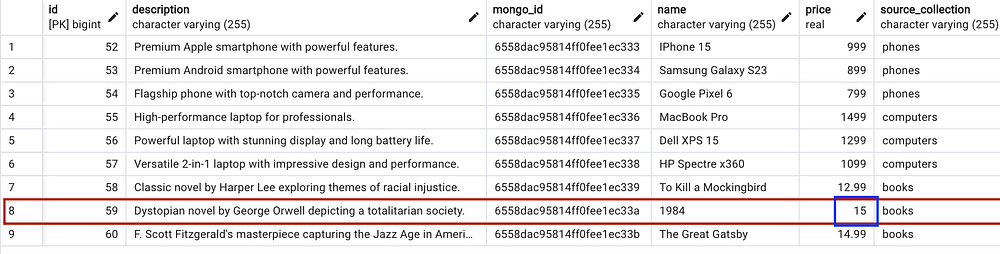

After the update operation we made, the data inside postgres must be updated :
Let’s add a new document inside the phones collection :

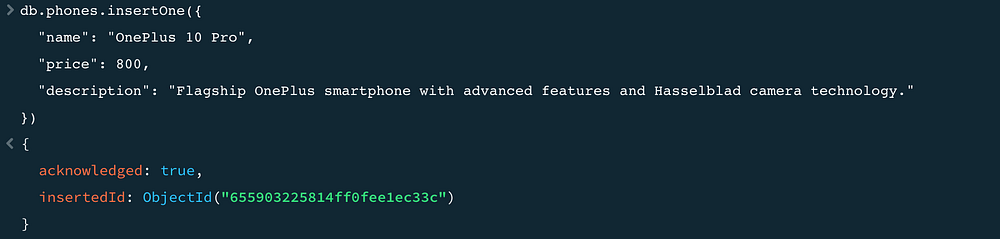

db.phones.insertOne({
"name": "OnePlus 10 Pro",
"price": 800,
"description": "Flagship OnePlus smartphone with advanced features and Hasselblad camera technology."
})
Now if we look to the application logs we will see a create operation

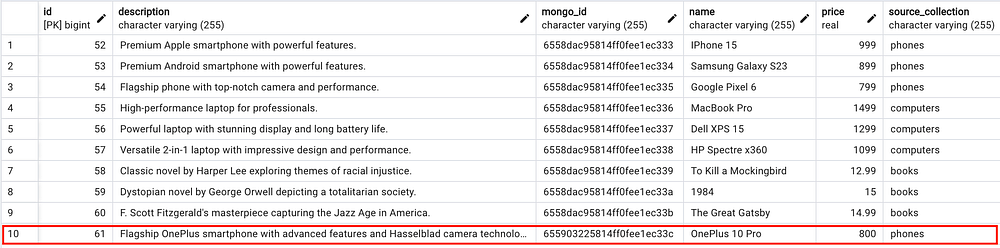

Collection : phones , DocumentId : 655903225814ff0fee1ec33c , Operation : cand new row appears on products table
Now let’s delete this phone from the phones collection:

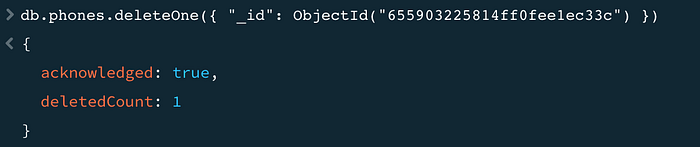

db.phones.deleteOne({ "_id": ObjectId("655903225814ff0fee1ec33c") })
Now if we look to the application logs we will see the delete operation

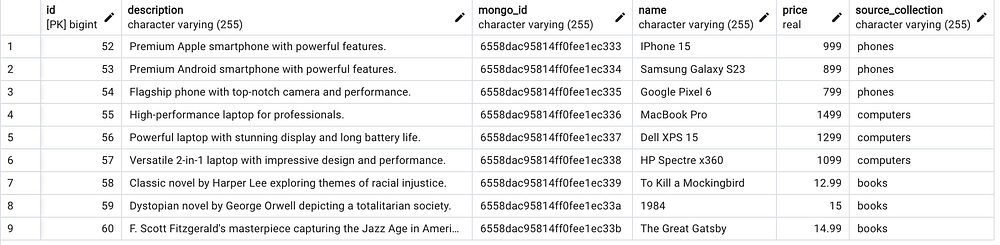

Collection : phones , DocumentId : 655903225814ff0fee1ec33c , Operation : dand now the row disappears from products table
Conclusion
In this article, we’ve explored the concept of Change Data Capture (CDC) and learned how to integrate Debezium with Spring Boot and MongoDB to enable real-time data streaming. By following the steps outlined in this guide, you can easily set up CDC in your applications, allowing you to react to data changes as they happen and build responsive, data-driven solutions.
All the project sources are available on my GitHub page :
Thank you for reading! 🙏 🙏
